- ECO green product; dark-sky compliant.
- Requires fewer LEDs to maintain effective illumination intensity.
- Small dimensions and lightweight packaging make installation fast and simple.
- Single pole installation lowers the cost of installation.
- Patented, asymmetric optical lens ensures high intensity brightness from edge to edge of your lighting application.

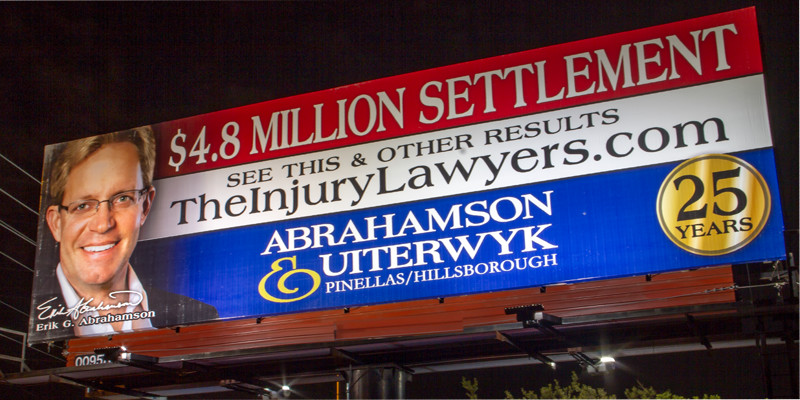

- The Ultra Billboard light has the highest concentration of light on desired areas. Reduced light spillage means the light does not spill into the night sky.
- Less heat and no UV emission eliminates attraction of mosquitoes and other insects.
- Completely weatherproof and waterproof, the Ultra LED Light can operate while submerged under water.
Product Specifications
| Product ID: | Ultra Billboard Lite 120-64 |
| Mount Type: | 1.5" x 1.5" square |
| Size: | 12" x 14" x 5" (HxWxD) |
| Color Temperature: | 5000K |
| Material: | extruded aluminum |
| LED Quantity | 64 |
| Luminous Flux: | 122lm @ 350mA |
| Rated lumen: | 10931 lm |
| Product Life: | 10 year |
Electrical Specifications:
| Wattage: | 120W |
| Input Voltage: | 85-265VAC |
| Nominal current: | 525mA max |
| Nominal current: | 91% |
| Nominal current: | 0.96 |
Product Specifications
| Product ID: | Ultra Billboard Lite 150-64 |
| Mount Type: | 1.5" x 1.5" square |
| Size: | 10.5" x 22.5" x 5" (HxWxD) |
| Color Temperature: | 5000K |
| Material: | extruded aluminum |
| LED Quantity: | 96 |
| Luminous Flux: | 122lm @ 350mA |
| Rated lumen: | 15225lm |
| Product Life: | 10 year |
Electrical Specifications:
| Wattage: | 150W |
| Input Voltage: | 90-305VAC |
| Nominal current: | 467mA max |
| Nominal current: | 89% |
| Nominal current: | 0.99 |
