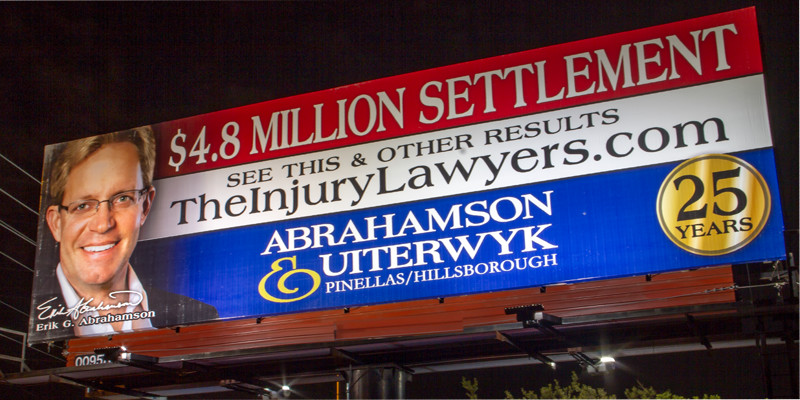

Ultravision Ultra Billboard Light

An LED light offering immense energy savings, the Ultra Billboard Light is versatile enough to use for a range of outdoor advertising purposes. The optic design technology gives your billboard a light spread larger than that seen in any similar product. This means that your products will be noticed, no matter when your prospects come into contact with them.

Ultravision Ultra Billboard Light

Solutions Customized For You



  • Advantages

    • ECO green product; dark-sky compliant.
    • Requires fewer LEDs to maintain effective illumination intensity.
    • Small dimensions and lightweight packaging make installation fast and simple.
    • Single pole installation lowers the cost of installation.
    • Patented, asymmetric optical lens ensures high intensity brightness from edge to edge of your lighting application.
    • The Ultra Billboard light has the highest concentration of light on desired areas. Reduced light spillage means the light does not spill into the night sky.
    • Less heat and no UV emission eliminates attraction of mosquitoes and other insects.
    • Completely weatherproof and waterproof, the Ultra LED Light can operate while submerged under water.

  • 120 Watt Specifications

    Product Specifications

    Product ID: Ultra Billboard Lite 120-64
    Mount Type: 1.5" x 1.5" square
    Size: 12" x 14" x 5" (HxWxD)
    Color Temperature: 5000K
    Material: extruded aluminum
    LED Quantity 64
    Luminous Flux: 122lm @ 350mA
    Rated lumen: 10931 lm
    Product Life: 10 year

    Electrical Specifications:

    Wattage:  120W
    Input Voltage:  85-265VAC
    Nominal current: 525mA max
    Nominal current: 91%
    Nominal current: 0.96

  • 150 Watt Specifications

    Product Specifications

    Product ID: Ultra Billboard Lite 150-64
    Mount Type: 1.5" x 1.5" square
    Size: 10.5" x 22.5" x 5" (HxWxD)
    Color Temperature: 5000K
    Material: extruded aluminum
    LED Quantity: 96
    Luminous Flux: 122lm @ 350mA
    Rated lumen: 15225lm
    Product Life: 10 year

    Electrical Specifications:

    Wattage:  150W
    Input Voltage:  90-305VAC
    Nominal current: 467mA max
    Nominal current: 89%
    Nominal current: 0.99
